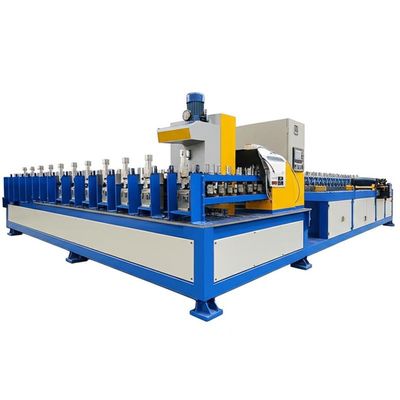

Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power

Tous les produits

Roll Carrelage formant la machine

(132)

petit pain de feuille de toiture formant la machine

(166)

rouleau double couche formant la machine

(231)

Panneau mural rouleau formant la machine

(51)

Roll Cap Ridge formant la machine

(58)

Roll Cadre de porte en formant la machine

(29)

Roll porte obturateur formant la machine

(56)

rôle de pont étage formant la machine

(57)

rouleau de tuyaux de descente des machines de formage

(32)

Machine de coupeur de découpeuse

(30)

Roll Machine de formage à froid

(22)

Petit pain de Purlin de la CZ formant la machine

(59)

Roll Gutter formant la machine

(50)

Machine enduite en pierre de tuile de toit

(11)

Rambarde de route formant la machine

(14)

rouleau de panneau sandwich formant la machine

(8)

Machine de rabattement de feuille de toit

(12)

Petit pain ondulé formant la machine

(19)

Goujon et petit pain de voie formant la machine

(55)
Examens de client
Machine facile à utiliser. Le patron est très intéressant.

—— Mr.Angolon de l'Europe

C'est un bon fabricant, un bon communicater anglais, et j'aime vos machines. C'est bonne qualité, et assez !

—— Mr.Mark d'Afrique

Gentil fournisseur ! J'aime votre livraison rapide et le cycle rapide de production, restera en contact avec vous.

—— Mr.Jack d'Amérique

Je suis en ligne une discussion en ligne

Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power

Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power

Image Grand :  Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power

Détails sur le produit:
Lieu d'origine: Botou Hebei Chine
Nom de marque: HC
Certification: CE
Numéro de modèle: HC30
Conditions de paiement et expédition:
Quantité de commande min: 1 ensemble
Détails d'emballage: La machine principale est nue, la boîte de contrôle d'ordinateur est emballée par la boîte de carton
Délai de livraison: 30 jours
Conditions de paiement: T / t, l / c
Capacité d'approvisionnement: 20 ensembles / mois
Contact

Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power

description de
Usage: Goujon et voie Taper: machine de formage de rouleaux de quille légère
Épaisseur: 0.8-1.8 mm Capacité: 0 à 35 m/min
Pouvoir: 21.5kw
Mettre en évidence:

0.8-1.8mm Thickness Stud and Track Roll Forming Machine

,

0-35m/min Capacity Light Keel Roll Forming Machine

,

21.5kw Power Steel Stud Roll Forming Machine

Automatic Opening And Closing Stud And Track Roll Forming Machine

Our Light Keel Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Certifications
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 0 Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 1 Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 2
Specifications for U Channel Light Keel Roll Forming Machine
Main Roll Forming Machine Roller station: 14 rows
Material of roller: High grade 45# forged steel plated with hard chrome plating
Material of cutter: Cr12 mould steel with quenched treatment
Material Type: PPGI GI AL
Material width: customized
Material thickness: 0.8-1.8mm
Others Speed: 0-35m/min
PLC system: DELTA
Weight: 5T

We do high standard roll forming machine for export about 20 years.
We have mature foreign trade team, senior engineers, experienced workers to make you satisfied.
We have machines at more than 130 countries and regions, and keep good business relationship.
We offer one year free warranty and free service for whole life of any machine.

Automatic Steel Double Layer Roll Forming Machine Parts
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 3
Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

  • Roller chrome coated thickness: 0.05 mm
  • Roller material: Forging Steel 45# heat treatment
Main Roll Former

We have experieced workers to design the rollers as customized profile drawing, and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission, to get strong machine for good finish products.

Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 4
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 5
Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

  • With non stop cutting
  • Material of blades: Cr12, quenching treatment
Our Service
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 6
Pre-Sales Service
  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 7
After-Sales Service
  • Training how to instal the machine, training how to operate the machine.
  • Engineers available to service machinery overseas.
Packing & Delivery
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 8

Size: 5600 (L) * 1550 (W) * 1510 (H)
Weight: 3.5T

  • Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
  • PLC control system and motor pump are packed with water proof paper, spare parts in carton box.
  • One set of machine needs a 40' container to shipping.
Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 9 Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 10 Automatic Opening and Closing Stud and Track Roll Forming Machine with 0.8-1.8mm Thickness 0-35m/min Capacity and 21.5kw Power 11
